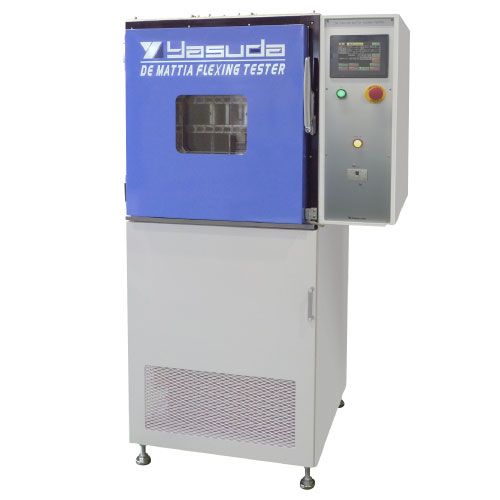

No.119-L DE MATTIA FLEX-CRACKING AND CRACK GROWTH TESTER WITH LOW TEMP. OVEN
JIS-K6260、ASTM-D813、BS-903、ISO-132
This tester is used to measure the appearance of cracks and the growth of the cracks to vulcanized rubber and thermo-plastic rubber by adding repetitive bending stress. The test is conducted by setting the test specimen to the parallel allocated grip and adding repetitive bending stress. The tester can also be assorted with a low temperature oven (L type).
| Hangings | 20hangings |
| Specimen | W25±0.1mm, L140~155mm, T6.30±0.15mm, Groove R2.38±0.03mm |
| Grip Distance | Max.75+1mm |
| Flexing speed | 300±10times/min |
| Counter | 6 Digits Preset Counter, 6 Digits Running Counter |
| Temperature Range | -35~150°C(Refrigerator) |
| Accessories | Specimen Setting Gauge, Notching Tool |
| Option | Notching Instrument |
| Power Source | 220V 3-Phase 30A 50/60Hz |
| Dimensions/Weight (Approx.) | W900xD850xH1,600mm・200kg |
