JIS-D0202、（K5400）、K5600-5-6、ASTM-D2197、

ISO-2409

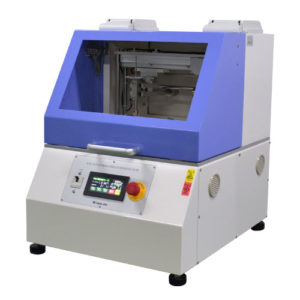

This tester is used for measuring the coherency and hardness of coated surface.

Stroke

Left-Right Max.50mm, Front-Back Max.50mm

Pitch

0.5, 1.0, 1.5, 2.0mm（Manual）

Scratching speed

10mm/s（Option : 4speeds changeable)

Test load

Max.350gf

Option

Conduction device, Cutter mounting device

Power source

AC220V 1-phase 5A 50/60Hz

Dimensions/Weight

W320xD230xH440mm・20kg
