JIS-(C3003)、C3216-5、IEC-60851-5

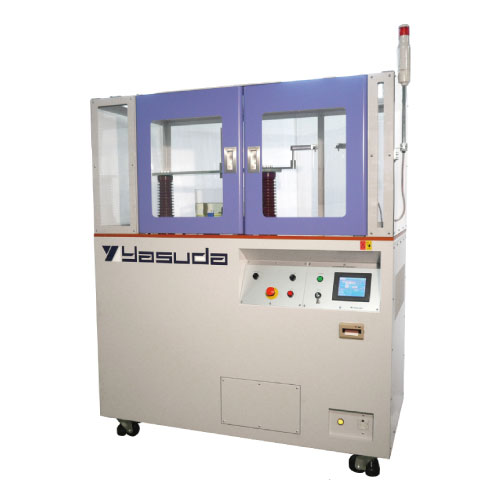

This is the machine to measure the breakdown voltage of the coating of enamel ,polyester or other various copper wires,etc.

Capacity

1kVA

Maximum output voltage

AC5～30kV

Specimen

Diameter φ0.05～φ3.2mm, L500mm(Twisting L120mm)

Equipment

A-meter, V-meter, Volt-slider, Programmed voltage raising device, Break-down current regulator

Option

Timer, Mini printer
