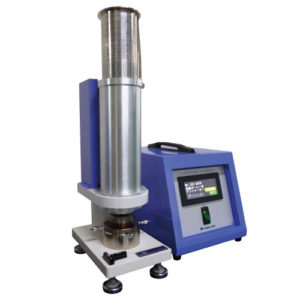

No.323-AUTO AUTOMATIC GURLEY TYPE DENSOMETER
|
JIS-L1096, P8117, ASTM-D726, TAPPI-T460, ISO-5636-5 |
|
We also have an automatic model with touch panel interface which displays the impermeability (s) and ISO permeability (µm/(Pa⋅s)). |
|
Specimen |
50 × 50 mm |
|
Clamp |
φ28.6 ± 0.1 mm (Permeation Area 642 mm2) |
|
Outer Cylinder |
Inner Diameter φ82.6 mm, H254 mm, Marker 127 mm from Bottom |
|
Inner Cylinder |
Outer Diameter φ76.2 mm, Inner Diameter φ74 mm, H254 mm, Mass 567 ± 0.5 g |
|
Air Volume |
0 to 100 ml (Scale 25 ml), 100 to 350 ml (Scale 50 ml) |
|
Time Measuring |
Automatic Max. 99999.9 sec |
|
Accessory |
Machine Oil |
|
Option |
Attachment (φ10 mm) |
| Power Source | AC 100 V, 1-Phase, 3 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | Tester Body: W150 × D230 × H420* mm/ 16 kg *H580 mm: When Inner Cylinder is set in the test position. Control panel: W250 × D360 × H250 mm/ 8 kg |
