JIS-L1018、L1096、P8143、TAPPI-T451

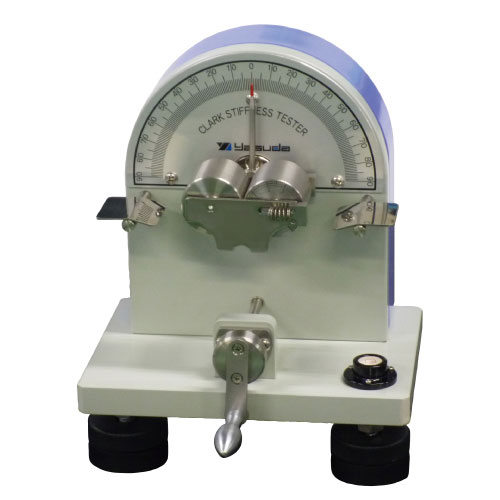

This tester is used for measuring the stiffness (softness) of paper, plastic film or textile.

Specimen

Paper : W15～50mm（Standard 30mm）, More than L75mm

Textile : W20mm, L150～200mm

Angle scale

Left-Right 0～90°（Unit 1°）

Rotaing speed

1.0±0.1rpm（Manual or Motorized）

Power source

AC220V 1-phase 1A 50/60Hz （Motorized model）

Dimensions/Weight

W250xD200xH260mm・3kg
