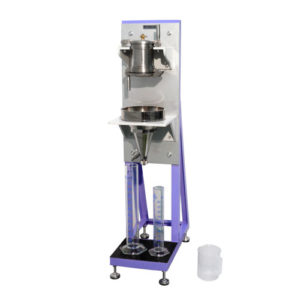

No.324 CANADIAN STANDARD FREENESS TESTER

ราคา:

No.324 CANADIAN STANDARD FREENESS TESTER

JIS-P8121, TAPPI-T227, ISO-5267-2

This tester is used to evaluate the freeness of pulp. By filtrating a certain amount of test specimen, the operator is to read the amount of discharged test specimen that flew out from the side tube. The operator is to use the correction table so that the test data is calibrated to the Canadian standard freeness conditions of a standard density of 0.3 % and standard temperature of 20 °C.

Specimen	Bone-Dried 3 g, Concentration 0.3 %, Solution 1,000 ml
Drainage chamber	Inner Diameter φ101.5 ± 0.4 mmH127 mm (Wire Screen to Rim)Air Cock Hole φ4.7 mm or More
Wire Screen	φ111.0 ± 0.5 mm, 80 mesh
Measuring funnel	Opening φ204 mmOverall L280 mmBottom Orifice φ3.05 ± 0.01 mmSide Orifice Inner Diameter φ13 mm
Accessories	Measuring Cylinder, Jug
Option	Stand
Dimensions/Weight (Approx.)	W300 × D270 × H720 mm/ 22 kg
